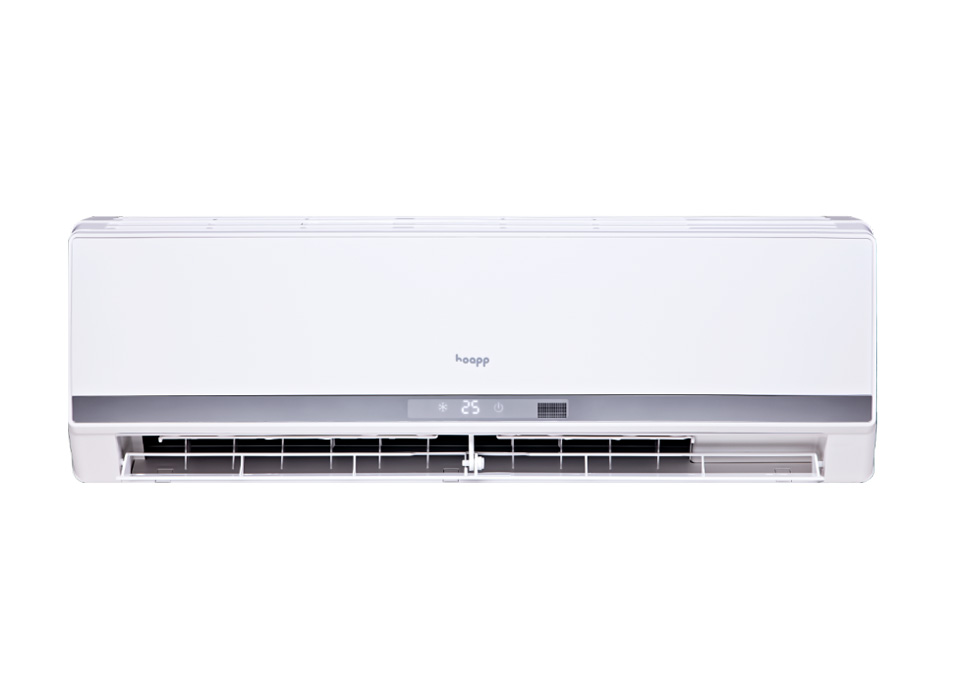

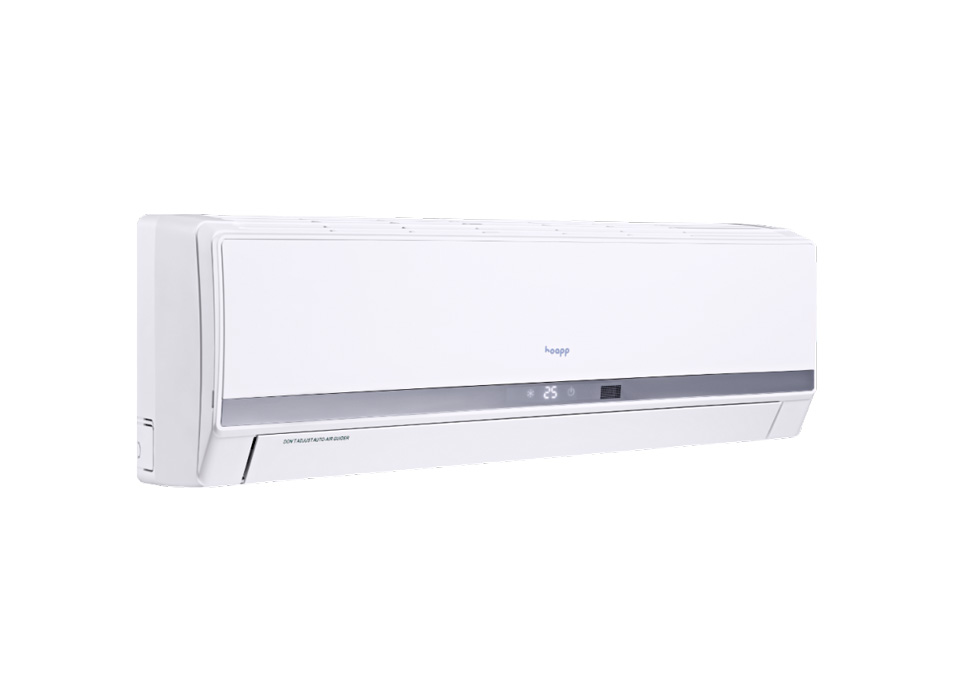

Hoapp Model Line
Line Series models operate on heating and cooling. Strict beautiful design. White hull, which clearly highlighted the black panel temperature sensor convenient.
Length of indoor units from 73 cm to 94 cm.
Recommended for smaller living spaces. Suitable for apartments and rooms in private homes measuring from 20 to 35 sq.m.
Multi-temperature, humidification and ventilation.
The performance characteristics comparable to the model range Edge, differing mainly design.
PRODUCT DESCRIPTION
| Indoor unit | HSC-GA22VA | HSC-GA28VA | HSC-GA34VA | HSC-GA49VA | HSC-GA65VA | ||
| Outdoor unit | HMC-GA22VA | HMC-GA28VA | HMC-GA34VA | HMC-GA49VA | HMC-GA65VA | ||
| Power supply | V, ph, Hz | 220-240 V, 1 phase, 50Hz | |||||
| EER/COP | 2.8/3.2 | 2.8/3.2 | 2.8/3.2 | 3.22/3.48 | 3.24/3.42 | ||
| Cooling | Performance | kW | 2.0 | 2.64 | 3.25 | 4.7 | 6.15 |
| Consumption cooling | W | 732 | 942 | 1150 | 1460 | 1900 | |
| Rated current | А | 2.95 | 4.18 | 5.1 | 6.48 | 8.43 | |
| Heating | Performance | kW | 2.1 | 2.8 | 3.4 | 4.9 | 6.5 |
| Consumption cooling | W | 659 | 879 | 1053 | 1430 | 1900 | |
| Rated current | А | 3.25 | 3.9 | 4.63 | 6.34 | 8.43 | |
| Air flow | m3/h | 400/360/320/290 | 400/370/340/310 | 600/550/500/450 | 850/800/760/730 | 850/780/650/550 | |
| The diameter of the pipes | liquid | mm | 6 | 6 | 6 | 6 | 6 |
| gas | mm | 9 | 9 | 9 | 12 | 12 | |
| The maximum length of line | m | 15 | 15 | 20 | 25 | 25 | |
| Maximum height difference | m | 5 | 10 | 10 | 10 | 10 | |
| Indoor unit | Noise level | dB(А) | 37/35/32 | 37/35/32 | 37/35/32 | 44/39/35 | 44/39/35 |
| Dimensions | WxHxD | 730х254х184 | 730х254х184 | 848х274х189 | 940x298x200 | 940x298x200 | |
| The weight | kg | 8 | 8 | 10 | 13 | 13 | |
| Outdoor unit | Noise level | dB(А) | 50 | 50 | 52 | 55 | 56 |
| Dimensions | WxHxD | 720х428х310 | 720х428х310 | 776х540х320 | 848x540x320 | 913x680x378 | |
| The weight | kg | 22 | 26 | 31 | 40 | 46 | |
