Hoapp Model Light
Light system model works for heating, cooling, and the boundary temperature heating operation down to -20°C which provide a number of advantages in the heating season, as well as in the off-season, these models are well ventilated with air, equipped with a remote control.

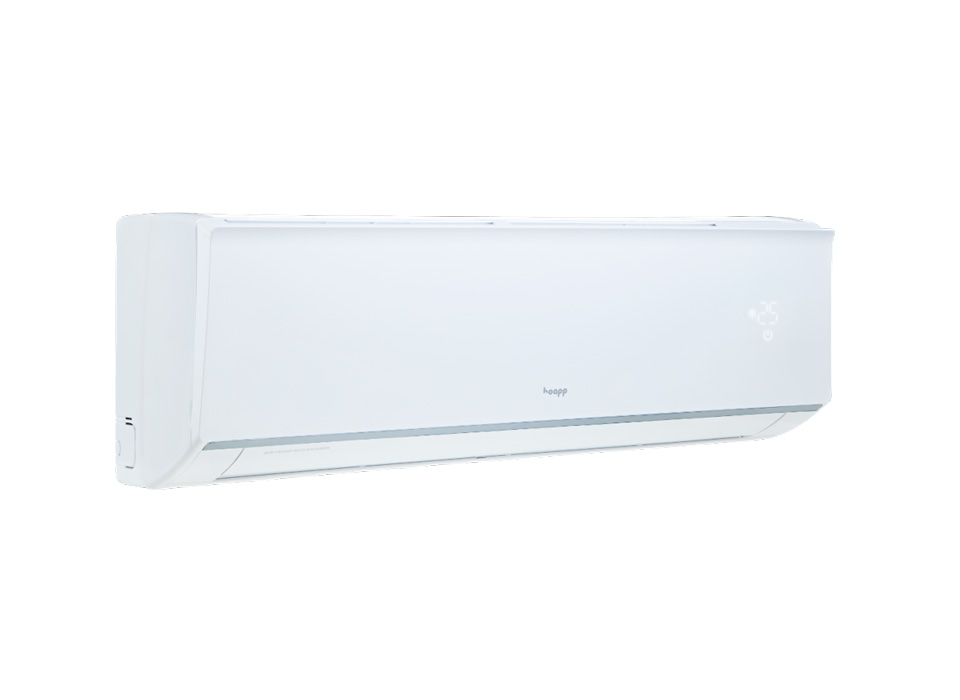

Depending on the capacity, suitable for small living spaces, as well as for ventilation of residential and office premises in more than 20 to 35 sq.m. The modern design of the indoor unit, light gray casing with a light metallic sheen.
Harmonious looks in the interior of any style. Length of indoor units from 79 to 108 cm, suitable for combined space (kitchen-living room) and office spaces.
PRODUCT DESCRIPTION
| Indoor unit | HSZ-GA28VA | HSZ-GA38VA | HSZ-GA55VA | HSZ-GA67VA | ||
|---|---|---|---|---|---|---|

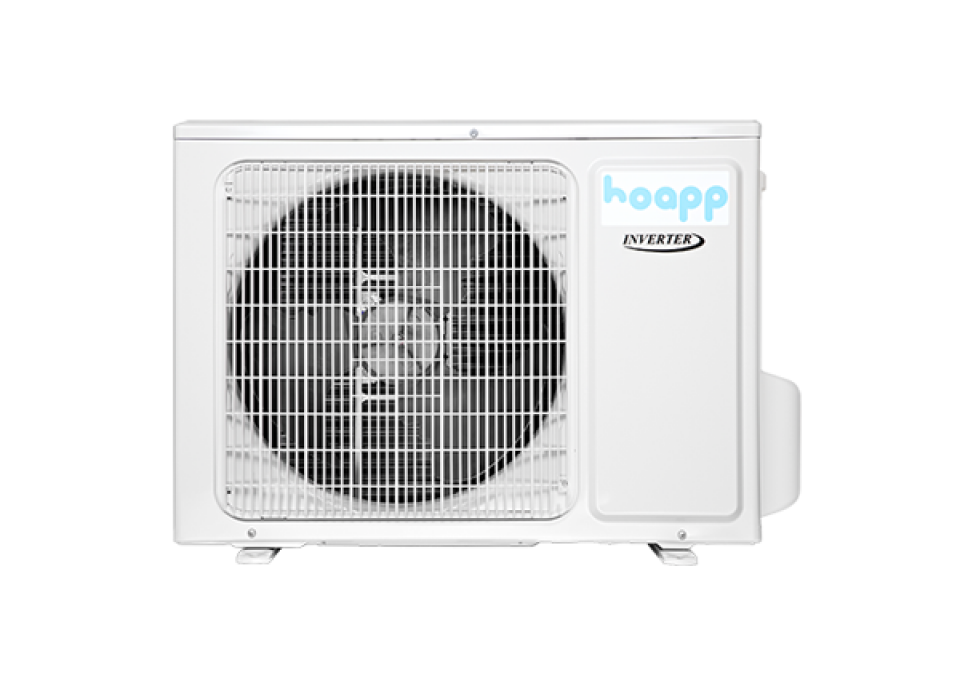

| Outdoor unit | HMZ-GA28VA | HMZ-GA38VA | HMZ-GA55VA | HMZ-GA67VA | ||
| Power supply | V, ph, Hz | 220-240 V, 1 phase, 50 Hz | ||||
| SEER/SCOP | 6.1/5.1 | 6.1/5.1 | 6.1/5.4 | 6.3/5.1 | ||
| Cooling | Performance | kW | 2.63(0.43-3.22) | 3.52(0,57-3.96) | 5.13(1.26-6.6) | 6.7(2.0-8.2) |
| Consumption cooling | W | 800(200~1420) | 1084(220~1550) | 1580(380~2450) | 1875(400~3700) | |
| Rated current | А | 6.3 | 6.9 | 10.9 | 16.42 | |
| Heating | Performance | kW | 2.8(0.43-4.1) | 3.66(0.59-5.13) | 5.28(1.12-6.8) | 7.3(2.0-8.5) |
| Consumption heating | W | 755(200~1550) | 989(220~1550) | 1410(350~2600) | 1945(450~3800) | |
| Rated current | А | 6.9 | 7.3 | 11.5 | 16.6 | |
| Air flow | m3/h | 560/490/430/330 | 660/540/460/330 | 800/720/610/520 | 1150/1050/950/850 | |
| The diameter of the pipes | liquid | mm | 6 | 6 | 6 | 6 |
| gas | mm | 9 | 9 | 12 | 16 | |
| The maximum length of line | m | 15 | 20 | 25 | 25 | |
| Maximum height difference | m | 10 | 10 | 10 | 10 | |
| Indoor unit | Noise level | dB(A) | 39/36/32/26 | 42/39/33/26 | 46/42/39/36 | 48/45/42/39 |
| Dimensions | WxHxD | 790x275x200 | 845x289x209 | 970x300x224 | 1078x325x246 | |
| The weight | kg | 9 | 10 | 13.5 | 17 | |
| Outdoor unit | Noise level | dB(A) | 61 | 62 | 63 | 68 |
| Dimensions | WxHxD | 776x540x320 | 776x540x320 | 955x700x396 | 955x700x396 | |
| The weight | kg | 28 | 29 | 45 | 53 | |
